Description

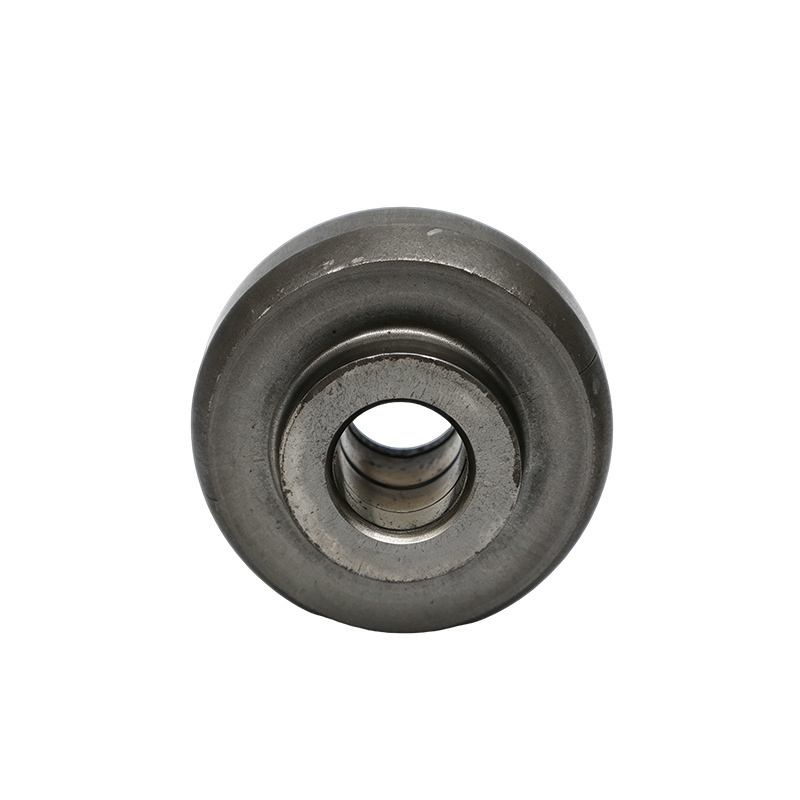

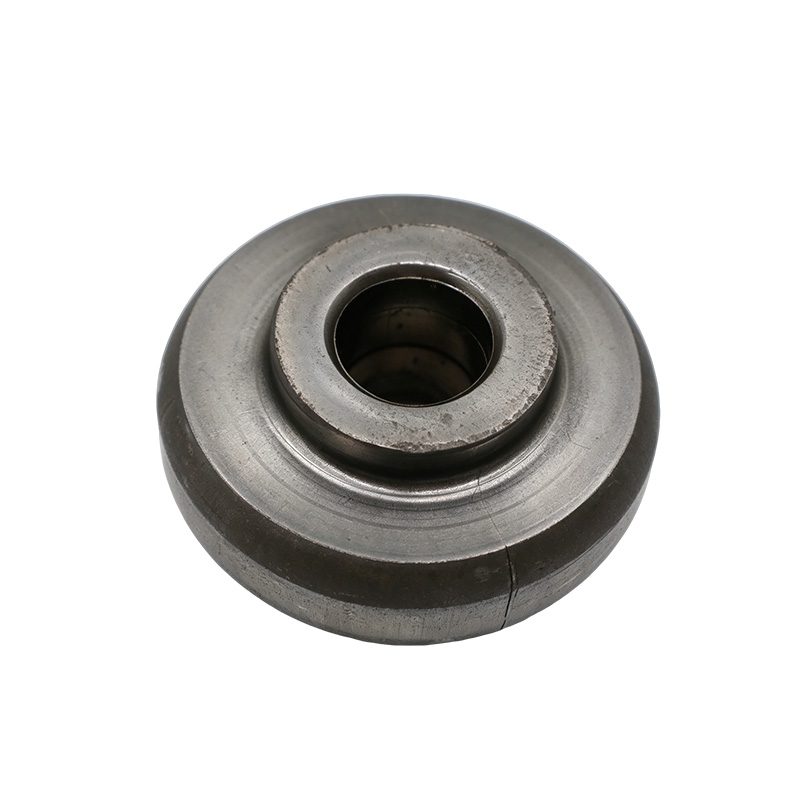

Automotive Shock Absorber Inner Sleeve Insert designed for automotive chassis applications, ensuring stable structural support and precise assembly in shock absorber systems. The outer diameter, R angles, and total length are formed through a one-step cold heading process, providing excellent dimensional accuracy, high strength, and consistent quality without secondary machining.

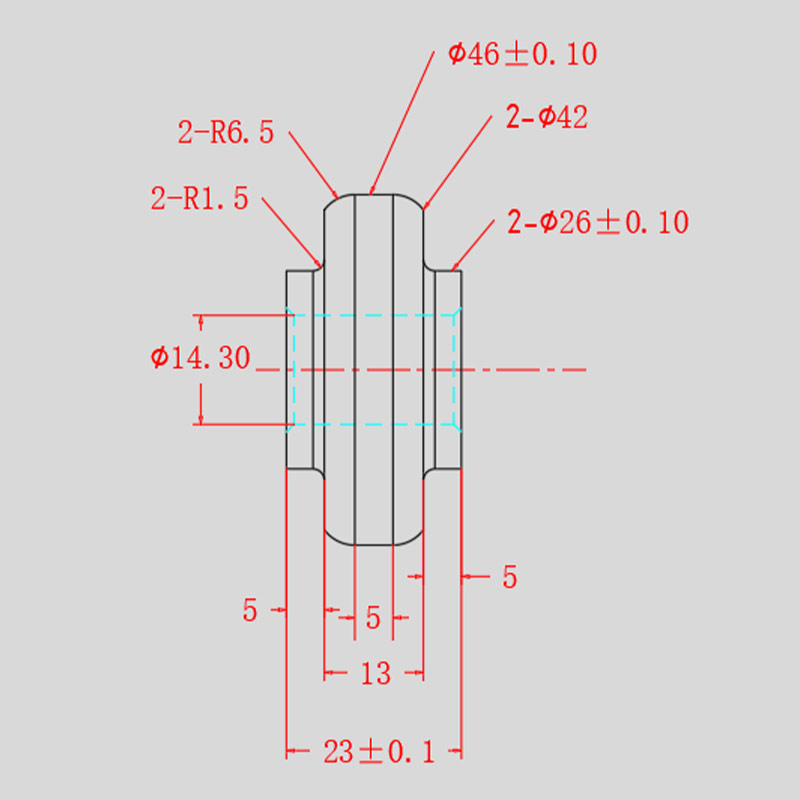

Manufactured from 35K steel (AISI 1035 equivalent), this Automotive Shock Absorber Inner Sleeve Insert delivers superior wear resistance, durability, and long service life under demanding suspension conditions. With an overall dimension of φ46 × 23 mm and precise forming details (φ46 ±0.1 mm, 2-R6.5, 2-R1.5, φ26 ±0.1 mm, 23 ±0.1 mm), it ensures reliable fitment, stable load transfer, and consistent performance in automotive chassis systems.
| Material | 35K (Equiv. AISI 1035) |
| Overall Dimension | φ46㎜*23㎜ |
| Main Dimension (OD, R Angle, Total Length) | φ46(±0.1)㎜*2-R6.5*2-R1.5*φ26(±0.1)㎜*23(±0.1)㎜ |
